Sysdig Monitor Documentation

Getting Started

Contents

Access the Sysdig Monitor Interface

To access the interface, the Sysdig Agent must be installed. For instructions on installing the Sysdig agent, see the Agent Installation documentation.

  • As part of the agent installation Welcome Wizard, you are prompted to create a user ID (based on email address) and password, which become the core Admin credentials.

  • Once agent installation is complete, the Sysdig Monitor interface is available at https://app.sysdigcloud.com.

Note

Subsequent users must also have user credentials defined, either through Sysdig Monitor or through an integrated authentication tool.

For information on creating users, see User and Team Administration.

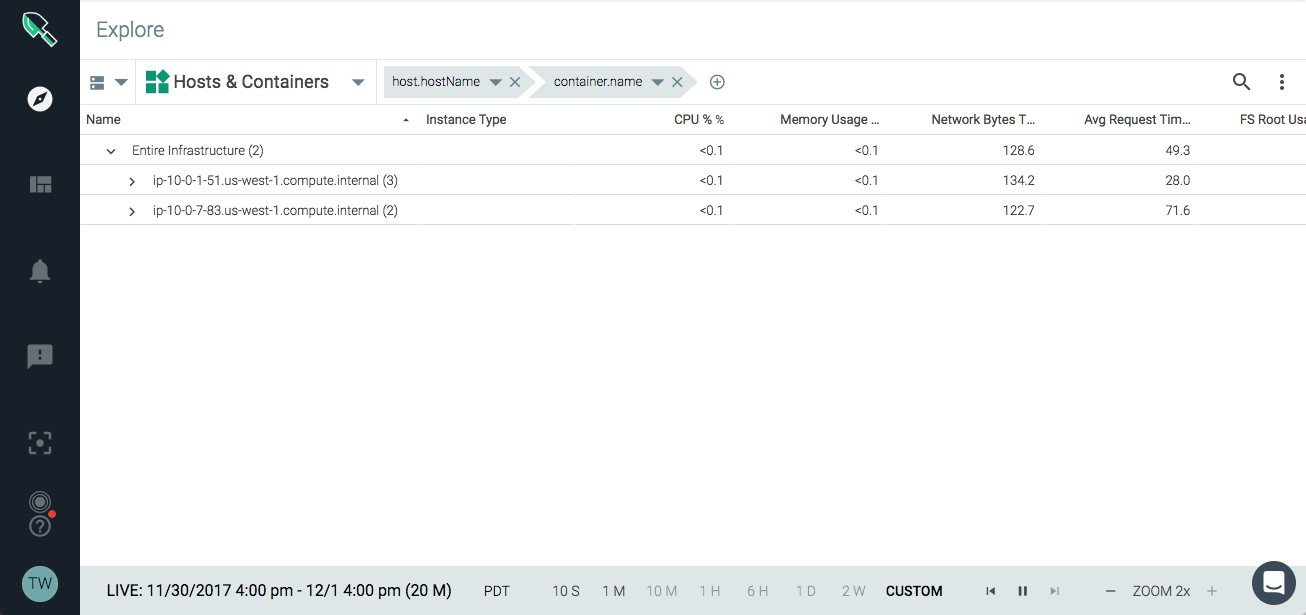

The Sysdig Monitor Interface

The Explore module is the primary starting point for all troubleshooting with Sysdig Monitor, and the default homepage of the web interface for all users. An overview of the health of the entire infrastructure is displayed in a table, with various infrastructure components broken into a pre-configured hierarchical grouping.

Note

Groupings are hierarchical aggregations that allow users to break down their infrastructure into logical sections to find and view issues. The default out-of-the-box grouping is host.hostName → container.name.

For more information on groupings, refer to the Grouping, Scoping, and Segmenting Metrics section.


The left-side menu provides access to the five primary modules within Sysdig Monitor, in addition to user menus and Spotlight.


Module

Description

Explore

The Explore module provides users with an in-depth overview of the entire infrastructure, and the ability to deep dive into metrics and dashboards to troubleshoot issues.

Dashboards

The Dashboards module allows users to create, modify, and share dashboards.

For more information, refer to the Dashboards documentation.

Alerts

The Alerts module allows users to create, modify, and enable/disable the current alerts configured in Sysdig Monitor, to ensure infrastructure issues are identified effectively.

For more information, refer to the Alerts documentation.

Events

The Events module provides a detailed list of any events that triggered an alert within the infrastructure.

For more information, refer to the Events documentation.

Captures

The Captures page provides a complete list of any capture files that have been created within Sysdig Monitor.

For more information, refer to the Captures documentation.

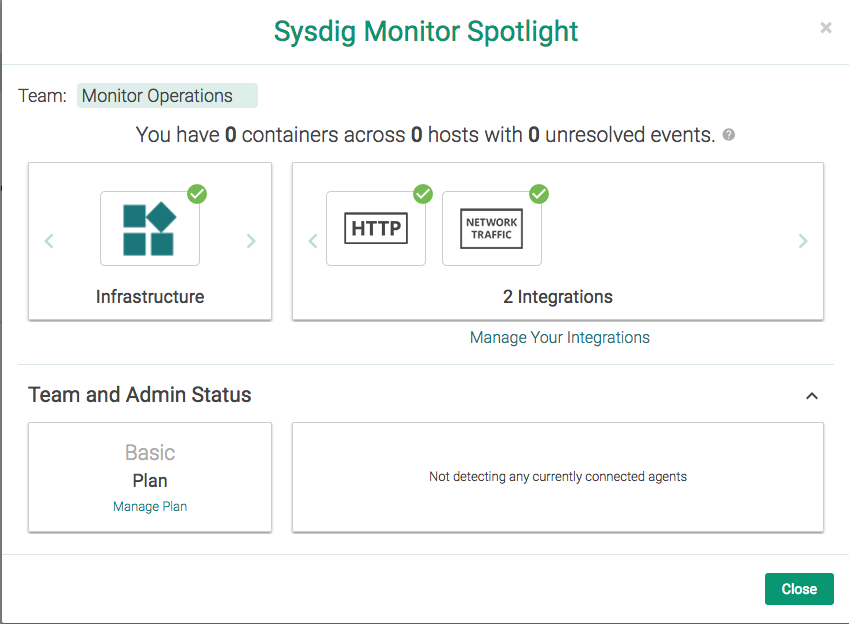

Sysdig Spotlight

Sysdig Spotlight provides an at a glance summary of the current state of the infrastructure, and the Sysdig Monitor subscription plan.

Manage Integrations through Sysdig Spotlight

Sysdig Monitor integrations can be managed through Sysdig Spotlight, before being configured separately.

Add an Integration

To add new integrations:

  1. Click the Spotlight (target) icon in the management section of the left-hand sidebar to open Sysdig Spotlight.


  2. Click the Manage Your Integrations link.

  3. Choose the integrations to add by selecting the relevant icon, or by searching for the integration, and then selecting the relevant icon.

    Note

    Multiple integrations can be added at once.

  4. Click the Add X Integration/s button to add the integrations to Sysdig Monitor.

Note

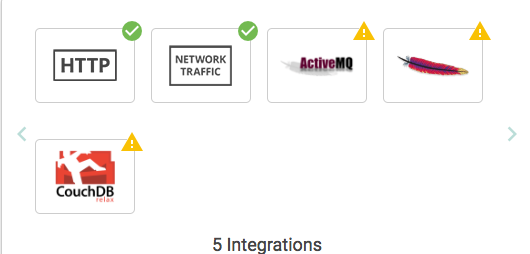

Integrations added through Sysdig Spotlight are marked with a warning symbol, as they are pending configuration.


Note

For configuration details, refer to the Integrations documentation.

Delete an Integration

To delete existing integrations:

  1. From the Spotlight page, select the integrations to remove.

    Note

    Running integrations cannot be removed.

  2. Click the Remove X Integration(s) button.

  3. Click the Remove link to confirm the changes.

Getting Help

See Get Help | Using Sysdig Support for information on all the options available in the help_16.png menu.

Next Steps

A number of avenues are available for users to pursue once they have opened the interface:
